Chapter 13

Up to now, our programs have worked.

But let’s be honest —
they’re starting to look 'messy!'

  • Numbers appear randomly.
  • Code repeats itself.
  • Small changes require editing many lines.

This chapter is about fixing that — not by learning more code, but by learning
how to organize what you already know.

Don't worry—we're not becoming software engineers today.
We'll simply learn a few habits that make our Arduino projects easier to build, debug, and improve.

🧠 Why Clean Code Matters (Even for Arduino)

When projects grow, bad structure causes:

  • confusion

  • bugs

  • fear of changing things

  • copy-paste disasters

Clean code gives you:

  • readability

  • control

  • confidence

  • scalability

This matters even more in embedded systems.

📦 Variables — Naming Values

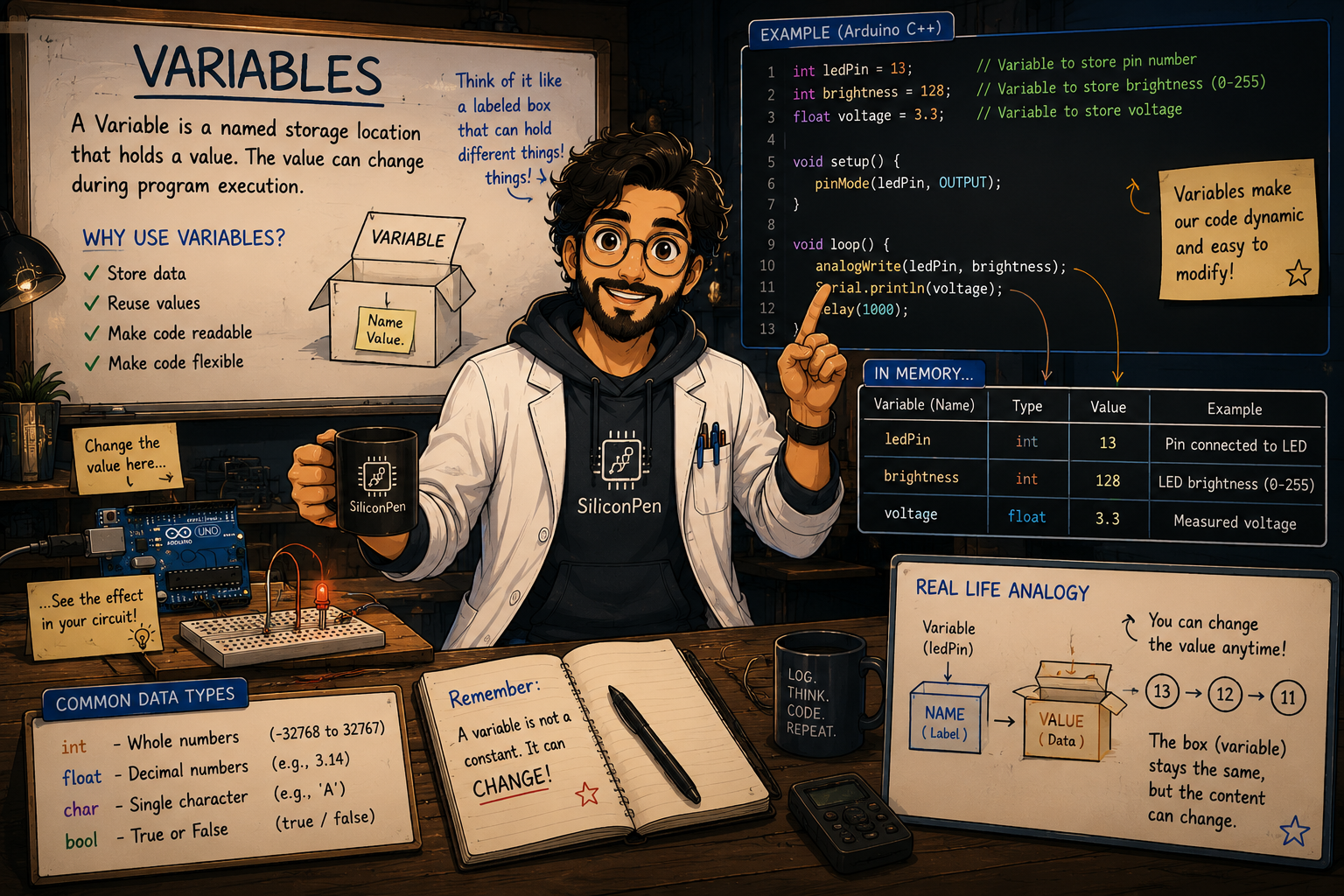

varibles

A variable is a named container that holds a value.

Instead of writing this everywhere:

digitalWrite(13, HIGH);

We do this:

const int ledPin = 13;
digitalWrite(ledPin, HIGH);

Now:

  • the meaning is clear

  • changing pins is easy

  • code reads like English

🔒 const — Lock What Shouldn’t Change

const int ledPin = 13;

const means:

“This value should never change.”

Use it for:

  • pin numbers

  • fixed timings

  • configuration values

This prevents accidental bugs.

🔢 Variables Store More Than Pins

Examples you already used:

int buttonState = digitalRead(2);
int sensorValue = analogRead(A0);

Variables let you:

  • store readings

  • compare values

  • make decisions

Without them, logic is impossible.

🔁 Functions — Avoid Repeating Yourself

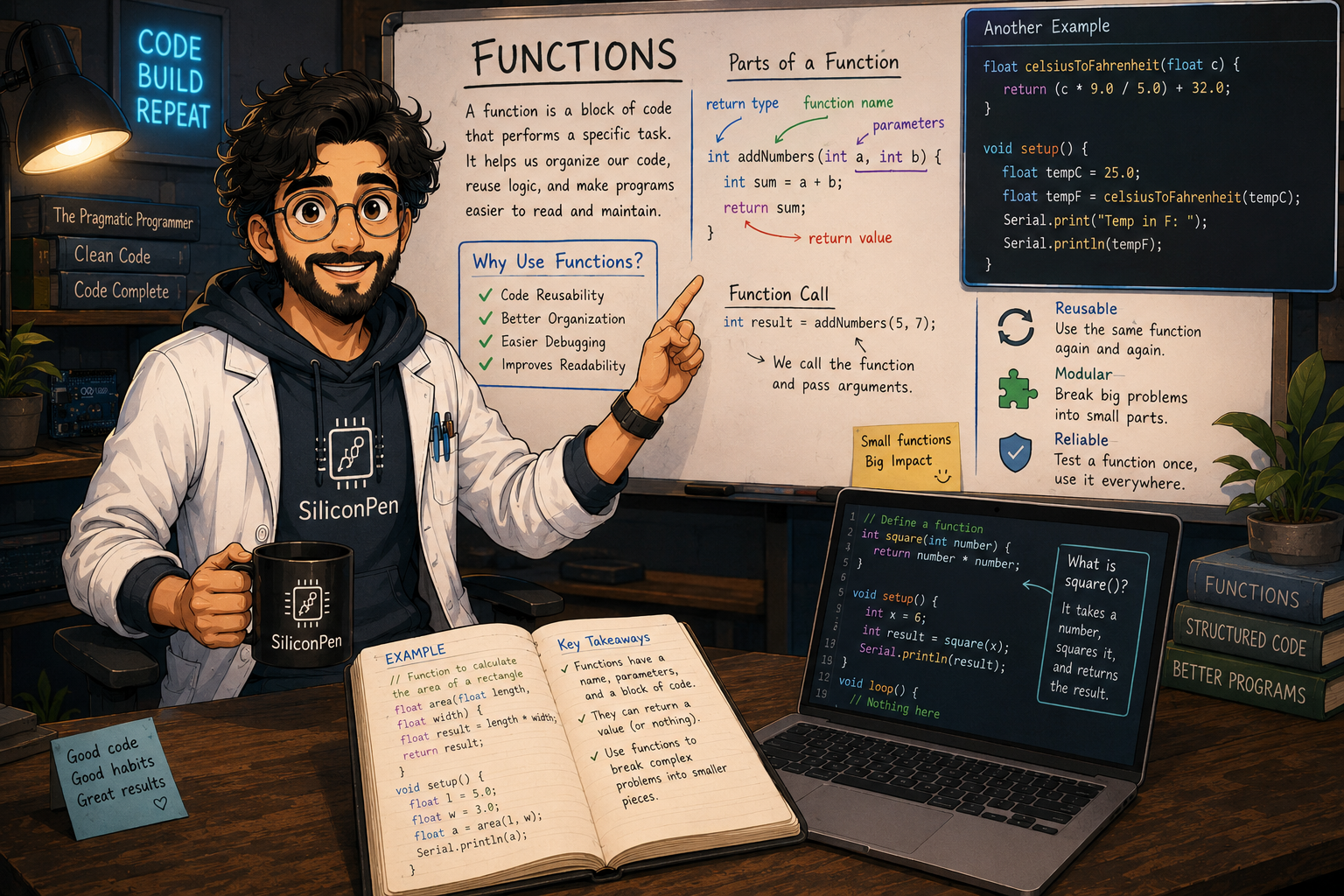

Functions

If you write the same code again and again, that’s a sign.

Example problem:

digitalWrite(9, HIGH);
delay(500);
digitalWrite(9, LOW);
delay(500);

What if you want to blink multiple LEDs?

Instead, create a function.

✨ Creating a Function

void blinkLED(int pin, int delayTime) {
  digitalWrite(pin, HIGH);
  delay(delayTime);
  digitalWrite(pin, LOW);
  delay(delayTime);
}

Now use it:

blinkLED(9, 500);
blinkLED(10, 200);

Cleaner. Reusable. Powerful.

🧩 What Functions Really Are

A function is:

  • a named block of code

  • that performs one job

  • and can be reused

Think of it as:

“Pack this behavior into a box and reuse it.”

This is how real systems are built.

🏗️ Clean Structure Example

const int ledPin = 9;
const int buttonPin = 2;

void setup() {
pinMode(ledPin, OUTPUT);
pinMode(buttonPin, INPUT_PULLUP);
}


void loop() {
if (digitalRead(buttonPin) == LOW) {
blinkLED(ledPin, 300);
}
}


void blinkLED(int pin, int delayTime) {
digitalWrite(pin, HIGH);
delay(delayTime);
digitalWrite(pin, LOW);
delay(delayTime);
}

This code:

  • reads clearly

  • is easy to extend

  • is easy to debug

What is the main purpose of a variable in programming? To store data that can be used and changed To display output on the screen To create hardware connections Why do we use functions in a program? To make the program run slower To organize reusable code into smaller tasks To replace variables Which of the following is a good clean code practice? Using single-letter variable names everywhere Writing all code inside one long function Using meaningful names and keeping functions focused a. b. c. Good code is not just about making it work—it should also be easy to read, understand, and maintain. Meaningful variable names and small, reusable functions make programs easier to debug and improve.

🧰 Common Beginner Mistakes

  • Using raw numbers everywhere

  • Avoiding functions because “it works already”

  • Writing huge loop() blocks

  • Fear of breaking working code

Clean code reduces fear, not increases it.

📌 What Comes Next

Now that we can:

  • structure code

  • reuse logic

  • name things properly

We’re ready to think about decision-making.

👉 Next Chapter — Loops, Conditions & Decisions in Embedded Systems
